VE
Techfine

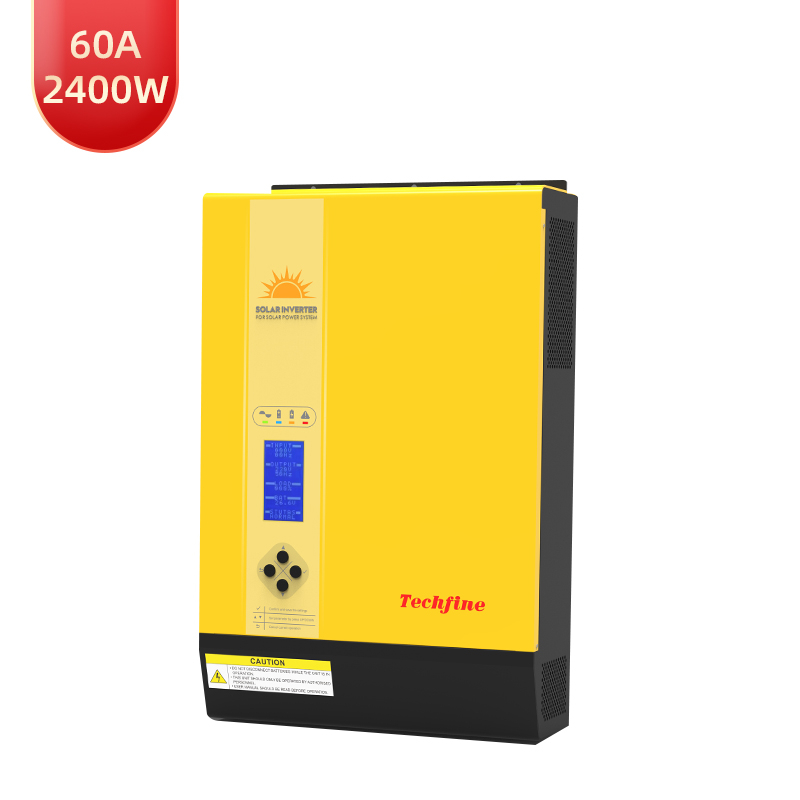

VE3024M
Features：
Pure sine wave output
WIFI/GPRS
MPPT Efficiency max 98%
Optional MPPT/PWM solar charge controller 30A-120A
DC start & automatic self-diagnostic fuction
Automatically send signal to start generator
High efficiency design for optimized battery performance
Selectable charging current based on applications
AC Start-up Voltage Auto Restart Voltage
Lead acid battery /Lithium battery
| Model | VE0512R | VE0812R | VE1012R | VE1512/24R | VE1012/24 | VE1512/24 | VE2012/24 | VE3024/48 | VE5024/48 |
| AC input voltage | 220VAC( standard) | 220VAC(standard) | |||||||
| Input voltage range | 154-275VACtSV (Nor Modef) | 154-264VAC13V (Nor Model) 18S-264VACt3V (UPS model) 175-28SVACt3V(AVR Type) | |||||||
| Input frequency | 50/60Hz±5% | 50/60Hz±5% | |||||||
| Out put power | 300W | 500W | 800W | 1200W | 800W | 1200W | 1600W | 2400W | 4000W |
| AC model output voltage | With AVR function 220V±10% | The output voltage under the mains is the same as the input voltage (with AVR function 220V±10%) | |||||||
| AC model outout frequency | The output frequency under the mains is the same as the input frequency | The output frequency under the mains is the same as the input frequency | |||||||
| Battery model output voltage | 220VAC±3% | 220VAC±10% | |||||||
| Battery model output frequency | 50HZ or 60HZ±1% | 50HZ or 60HZ±1% | |||||||
| Battery model output wave | Pure sine wave | Pure sine wave | |||||||
| Battery type | External lead-acid battery, Gel battery, water battery or Uthium battery | External lead-acid battery, Gel battery, water battery or Uthium battery | |||||||
| Battery voltage | 12VDC | 12VDC | 12VDC | 12/24VDC | 12/24VDC | 24/4SVDC | 24/4SVDC | 24/48VDC | 24/48VDC |
| Battery charging voltage | 13.75VDC | 13.75VDC | 13.75VDC | 13.75/27VDC | 13.75/27VDC | 27/54VDC | 27/54VDC | 27/54VDC | 27/54VDC |
| Maximum PV array power | 12V:400W 24V: 800W | 12V: 800W 24V: 1600V 48V: 3200W | |||||||
| Solar input voltage range | 12V: PWM 15V-30VDC 24V: PWM 30V-60VDC | 12V: MPPT 15V-150VDC / PWM 15V-30VDC 24V: MPPT 30V-150VDC / PWM 30V-60VDC 48V: MPPT 60V-150VDC / PWM 60V-105VDC | |||||||
| Maximum PV Display Open Circuit Voltage | 12V: PWM 30VDC 24V: PWM 60VDC | 12V: MPPT 150VDC / PWM 30VDC 24V: MPPT 150VDC / PWM 60VDC 48V: MPPT150VDC/PWM 10SVDC | |||||||
| Maximum solar charging current | 30A | 60A | |||||||
| Maximum AC Charge Current | 8A | 15A | 20A | 30A/18A | 15A/8A | 30A/15A | 40A/20A | 30A/15A | 42A/21A |
| Battery charging voltage range | 154-275VAC±5V | 154-280VAC | |||||||
| Transfer time | ≤10ms | ≤10ms(UPS model)/ ≤20ms (INV model) | |||||||
| Load peak ratio | (MAX)3:1 | (MAX)3:1 | |||||||
| Protective function | Under the mains: input overcurrent fuse | ||||||||
| Under inverter overload protection, short circuit protection, low voltage protection, (with battery anti-reverse connection board) | |||||||||
| Status Display | You can view parameters such as AC voltage, AC frequency, PV voltage PV current, output voftage, output frequency, battery voltage, load current and other parameters by turning the page keys. | ||||||||
| Voice prompt | low battery protection buzzer long beep | ||||||||
| Low battery buzzer beeps every second | |||||||||
| Overload buzzer beeps | |||||||||
| When the overload is less than 130%, the buzzer will sound every second, and the output win be turned off after 30S. When the overload is greater than 150%, the output will be turned off after 300ms. | |||||||||
| Machine fault buzzer beeps | |||||||||
| Operating temperature | 0°C~40°C | ||||||||
| Storage temperature | —15°C~45°C | ||||||||
| Relative temperature Htfinoce | —10°C~90°C no condensation | ||||||||
| Nosie | ＜45dB | ||||||||
| Machine size (L*W*H)mm | 325*263*123MM | 512*320*136MM | |||||||
