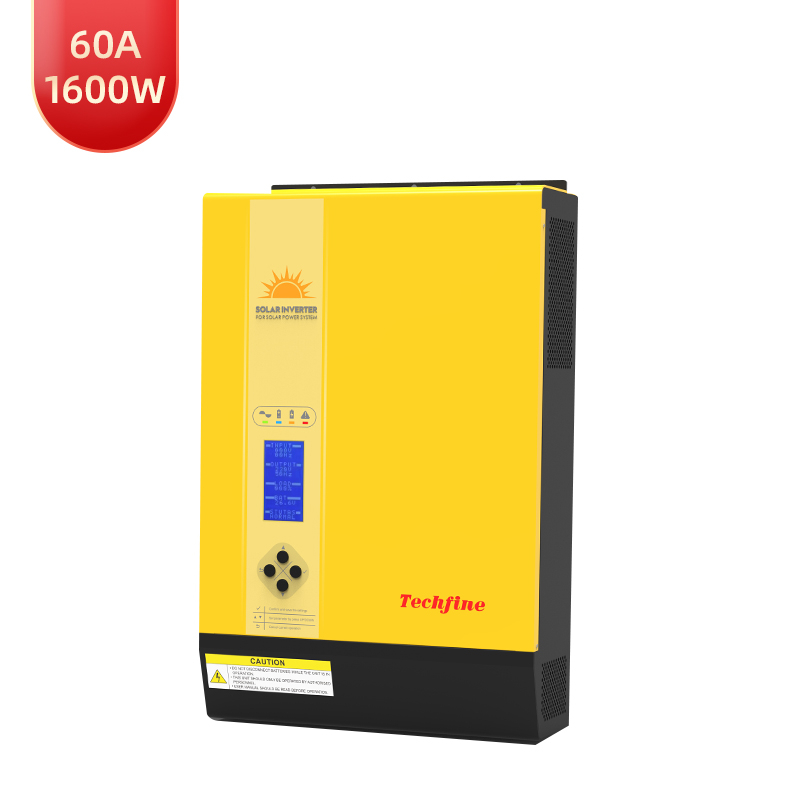

Low Frequency 2KVA/1.6KW 1600W 12VDC 220VAC 2KVA 2000VA built in MPPT Solar inverter

Tips:
Samples can be sent for testing;
Minimum order quantity (MOQ) ≥5 Pieces;
Availability:
Inquiry

  • VE

  • Techfine

  • VE2012M

Features：

  • Pure sine wave output

  • WIFI/GPRS

  • MPPT Efficiency max 98%

  • Optional MPPT/PWM solar charge controller 30A-120A

  • DC start & automatic self-diagnostic fuction

  • Automatically send signal to start generator

  • High efficiency design for optimized battery performance

  • Selectable charging current based on applications

  • AC Start-up Voltage Auto Restart Voltage

  • Lead acid battery /Lithium battery

Application：

43    41


38    39


40    42


ModelVE1012VE1512VE2024VE3024VE5024
Capacity(VA)1000VA1500VA2000VA3000VA5000VA
Input Voltage(DC)12V12V24V24V24V
Nominal   Voltage220VAC
Voltage Range154-265VAC (AC   Model);185-264VAC±3V(UPS Model)
Frequency50-60HZ Auto sensing
Power Factor0.8
Rated Power800W1200W1600W2400W4000W
Voltage220VAC
Frequency50/60HZ
WaveformPure Sine Wave
Transfer Time   (DC to AC)<8ms
Transfer Time (AC to DC)<8ms
Output Voltage Regulation土10%
Bypass ModeYes
Saver ModeYes
Efficiency>98%
Input ProtectionCircuit Breaker
Output ProtectionCircuit Breaker
Battery TypeAGM-Deep Cycle ,Gel/Up to   500Ah
Charging Current25A30A28A40A65A
Low Level   disconnect (Selectable)10V or 10.5V20V or 21V
PWM(Optional)   controller  Voltage15VDC-30VDC30VDC-60VDC
MPPT(Optional)   controller  Voltage15VDC-150VDC30VDC-150VDC
Maximum PV   array open circuit voltage800W1600W3200W
Maximum solar   charge currentPWM:30VDC, MPPT:150VDCPWM:60VDC,   MPPT:150VDC
Protections60A
LCD indicator   statusOver load, over temp, over   charging, battery low, battery reverse connect, high AC voltage etc.
LED indicator   statusAC input voltage, AC input   frequency, PV voltage, PV current , Output Voltage, Output Frequency, Battery
LOW battery   alarmAudible alarm-5 seconds   beeping
Overload alarmAudible alarm- continuous   beeping
FaultAudible alarm- continuous   beeping
Temperature0-40℃
Humidity-10℃~90℃ Non condensing
Accoustic   Noise(db)>55dB
Size L*W*H(mm)470*335*210MM
Weight (kg)1314.51719.525.3
