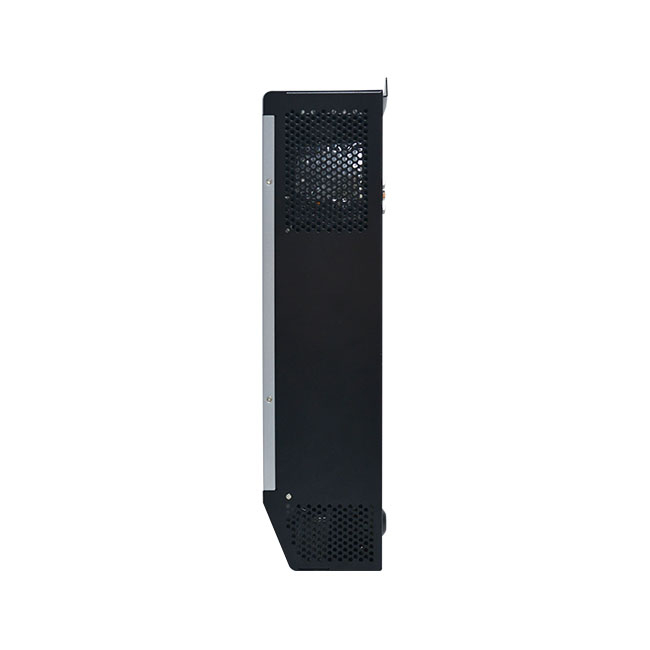

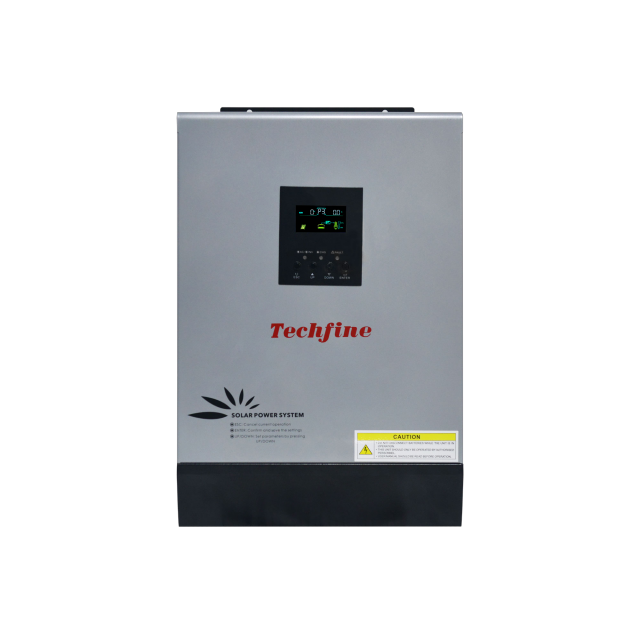

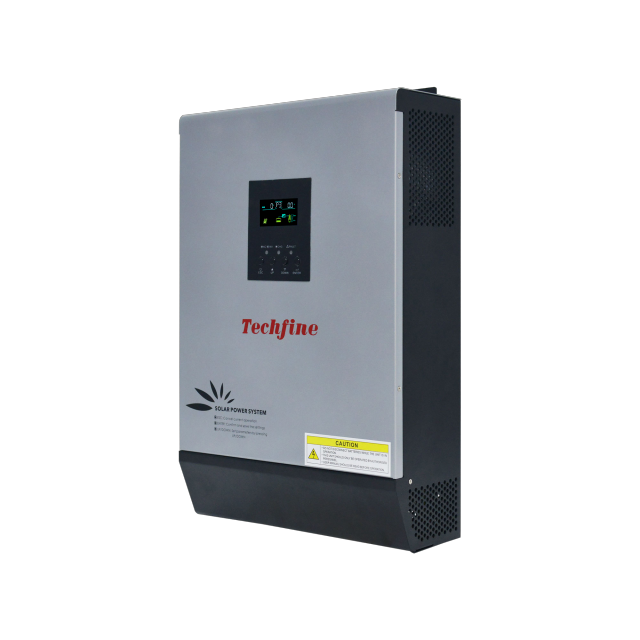

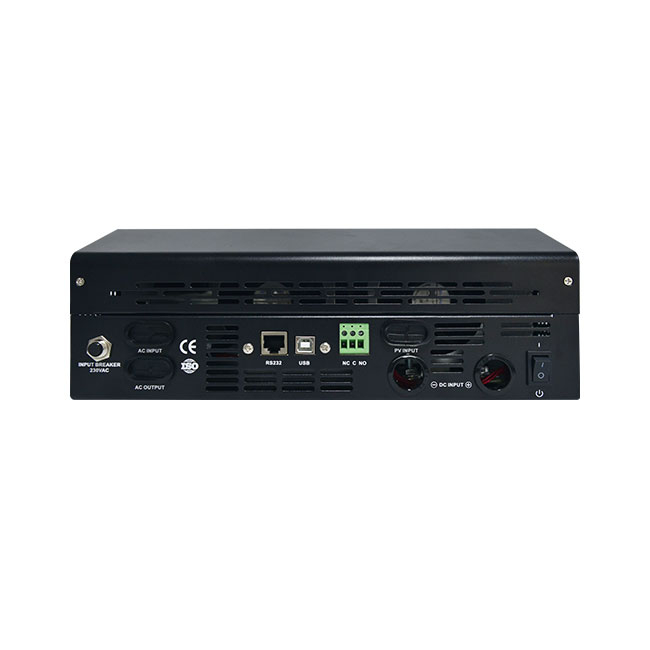

Low Frequency 1KVA-5KVA built in 60A MPPT Solar inverter

Tips:
Samples can be sent for testing;
Minimum order quantity (MOQ) ≥5 Pieces;
Feature：
Pure sine wave output
Optional MPPT/PWM solar charge controller60A
MPPT Efficiency max 98%
DC Start & Automatic Self-Diagnostic Function
High Efficiency Design & "Power Saving Modeto Conserve Energy
Smart battery charger design for optimized battery performance
Availability:
Inquiry

  • VG

  • Techfine


Feature：

Pure sine wave output

Optional MPPT/PWM solar charge controller60A

MPPT Efficiency max98%

DC Start & Automatic Self-Diagnostic Function

High Efficiency Design & "Power Saving Modeto Conserve Energy

Smart battery charger design for optimized battery performance

Selectable charging current based on applications

Auto Restart when Ac in recovering

AC input/Dc input/solar input optional priority


Application

43    41

38    39


40    42

ModelVG1012VG1512VG2024VG3024VG5024
Capacity(VA)1000VA1500VA2000VA3000VA5000VA
Input   Voltage(DC)12V12V24V24V24V
Nominal   Voltage220VAC
Voltage   Range154-265VAC (AC Model);185-264VAC±3V(UPS   Model)
Frequency50-60HZ Auto sensing
Power   Factor0.8
Rated   Power800W1200W1600W2400W4000W
Voltage220VAC
Frequency50/60HZ
WaveformPure Sine Wave
Transfer   Time (AC to DC)<8ms
Transfer   Time (DC to AC)<8ms
Output   Voltage Regulation土10%
Bypass   ModeYes
Saver   ModeYes
Efficiency>98%
Input   ProtectionCircuit Breaker
Output   ProtectionCircuit Breaker
Battery   TypeAGM-Deep Cycle ,Gel/Up to 500Ah
Charging   Current25A30A28A40A65A
Low   Level disconnect (Selectable)10V or 10.5V20V or 21V
PWM(Optional)   controller Voltage15VDC-30VDC30VDC-60VDC
MPPT(Optional)   controller Voltage15VDC-150VDC30VDC-150VDC
Maximum   PV array power400W800W1600W
Maximum   PV array open circuit voltagePWM:30VDC, MPPT:150VDCPWM:60VDC, MPPT:150VDC
Maximum   solar charge current60A
ProtectionsOver load, over temp, over charging,   battery low, battery reverse connect, high AC voltage etc.
LCD   indicator statusAC input voltage, AC input frequency, PV   voltage, PV current , Output Voltage, Output Frequency, Battery voltage, Load   current
etc.
LED   indicator statusAC Line In:Green/Inverter:Green/Charging   :Yellow/Alarm :Red
LOW   battery alarmAudible alarm-5 seconds beeping
Overload   alarmAudible alarm- continuous beeping
FaultAudible   alarm- continuous beeping
Temperature0-40℃
Humidity—10℃~90℃ Non condensing
Accoustic   Noise(db)>55dB
