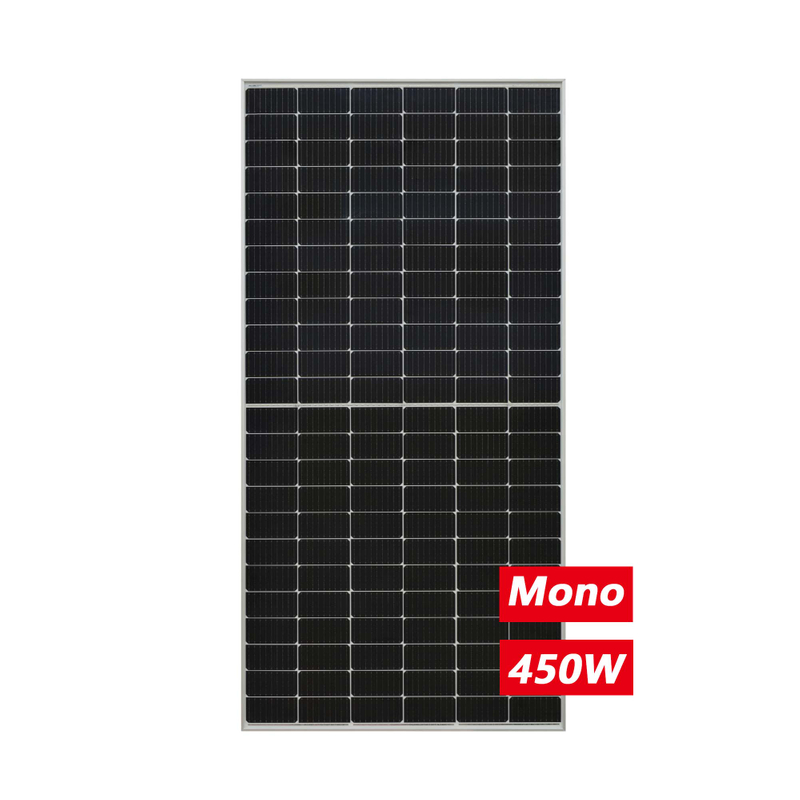

M450-36
Techfine
Multi Busbar Technology
Better light trapping and current collection to improve, Effectively improvethe module's power output and reliability
Higher output power
Module outputpowerincreased to 505W
Low light performance
The specialsolar cell technology has excellent low light power generationperformance
Better resistance to hot spots

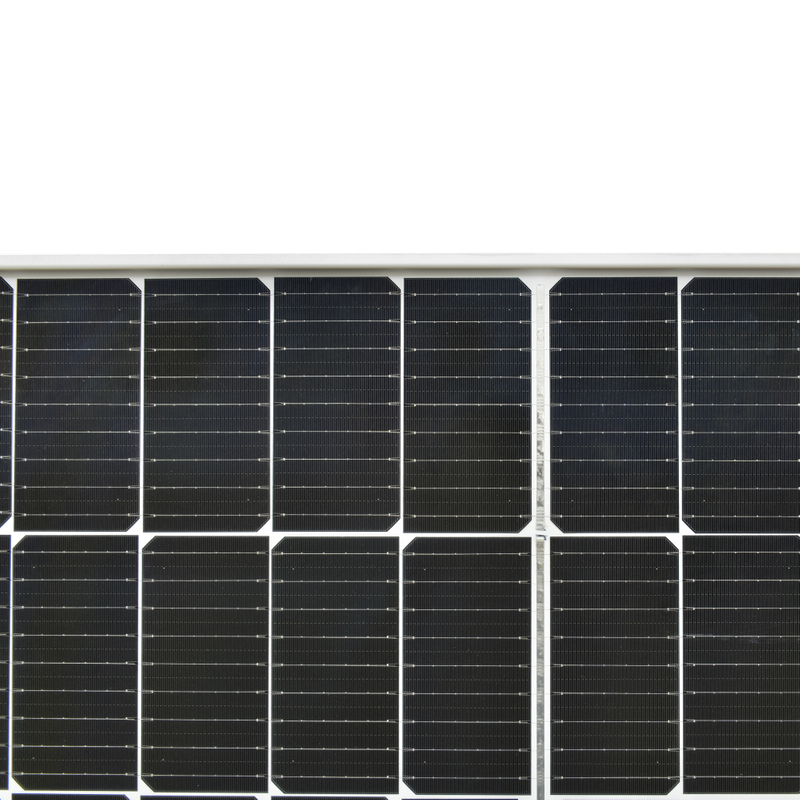

The use ofhalf cell structure and special circuit design is less shade loss, withbetter temperature coefficient and thermal spot resistance ability
Adaptability to harsh environments
High performance materials are suitable for coastal, farm, desert and otherharsh environmental conditions, glass surface is anti-reflective and easy toclean, minimizing power generation losses caused by dirt and dust.
Multi Busbar Technology
Better light trapping and current collection to improve, Effectively improvethe module's power output and reliability
Higher output power
Module outputpowerincreased to 505W
Low light performance
The specialsolar cell technology has excellent low light power generationperformance
Better resistance to hot spots
The use ofhalf cell structure and special circuit design is less shade loss, withbetter temperature coefficient and thermal spot resistance ability
Adaptability to harsh environments
High performance materials are suitable for coastal, farm, desert and otherharsh environmental conditions, glass surface is anti-reflective and easy toclean, minimizing power generation losses caused by dirt and dust.
Mechanical Data | |
Number of Cells | 144 Cells[6x24) |
Dimensions of Module L*W*H(mm) | 2108x1048x35mm |
Weight (kg) | 25.6kg |
Glass | High transparency solar glass 32mm (0.13 inches) |
Backsheet | White |

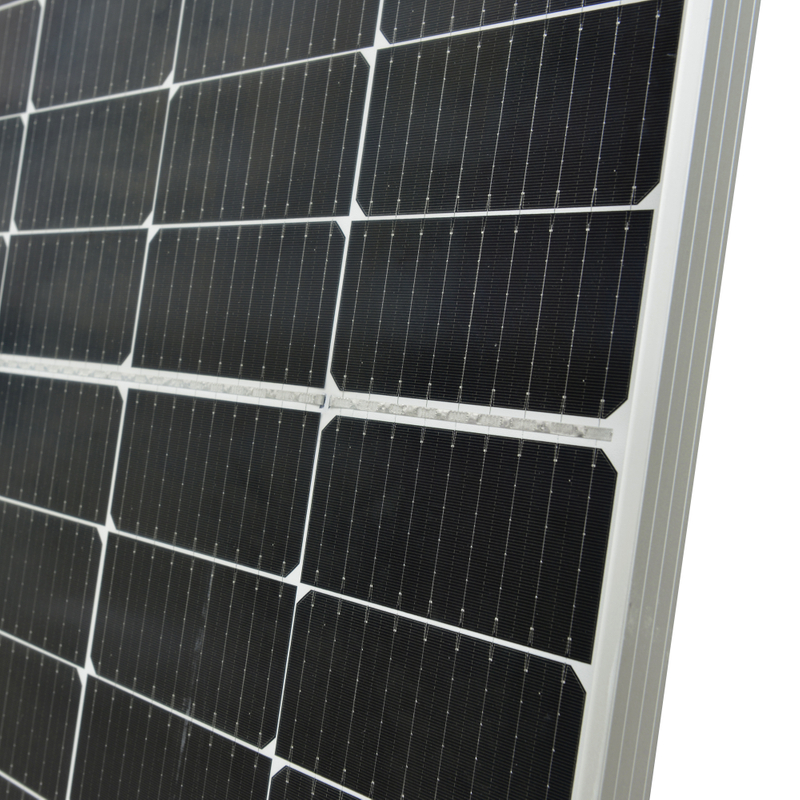

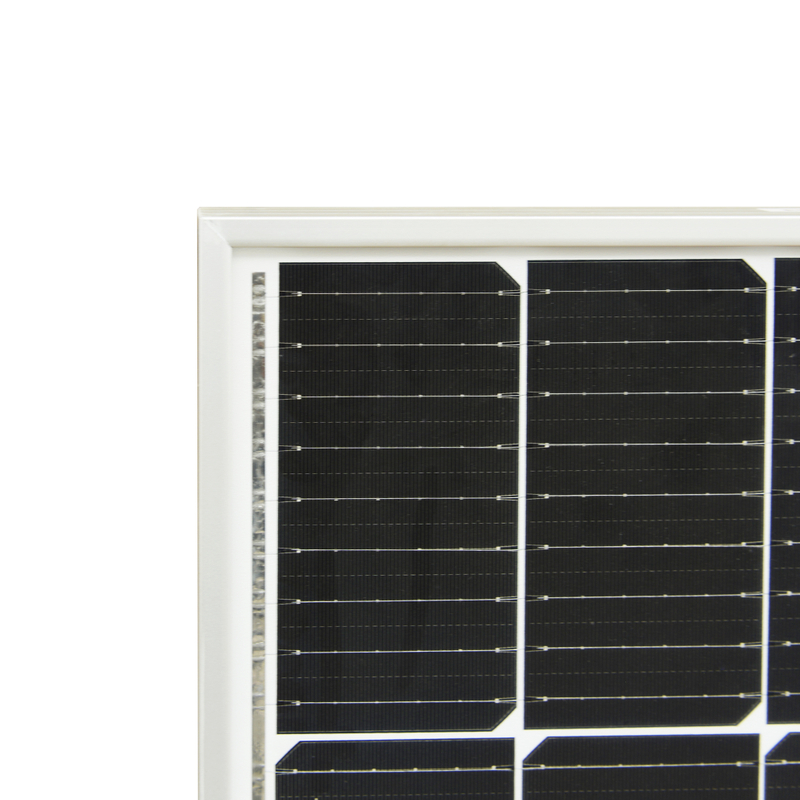

Frame | Silver, anodized aluminium alloy |

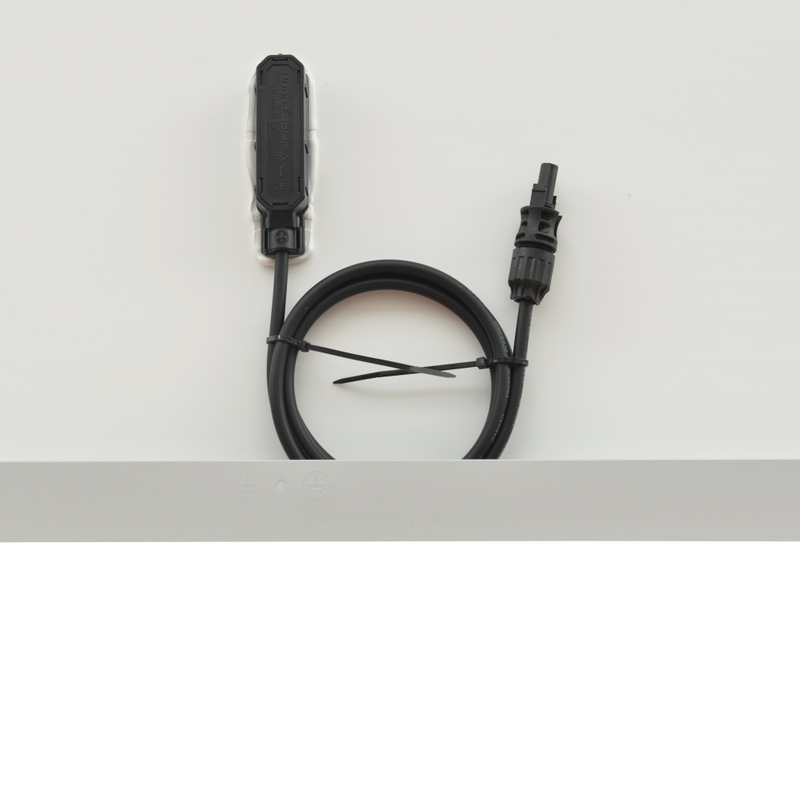

J-Box | IP68 Rated |
Cable | 4.0mm²(0.006 inches²), Portrait:300/300mm (11.81inches) |
Number of diodes | 3 |
Wind/Snow Load | 2400Pa/5400Pa* |
Connector | MC Compatible |
Temperature Ratings | |
Nominal Operating CellTemperature [NOCT) | 44±2℃ |
Temperature Coefficient of lsc | 0.06%/℃ |
Temperature Coefficient of Voc | -0.3%/℃ |
Temperature Coefficient of Pmax | -0.39%/℃ |
Maximum Ratings | |
OperationalTemperature | -40-+85℃ |
Maximum System Voltage | 150VDC |
Max Series Fuse Rating | 20A |
