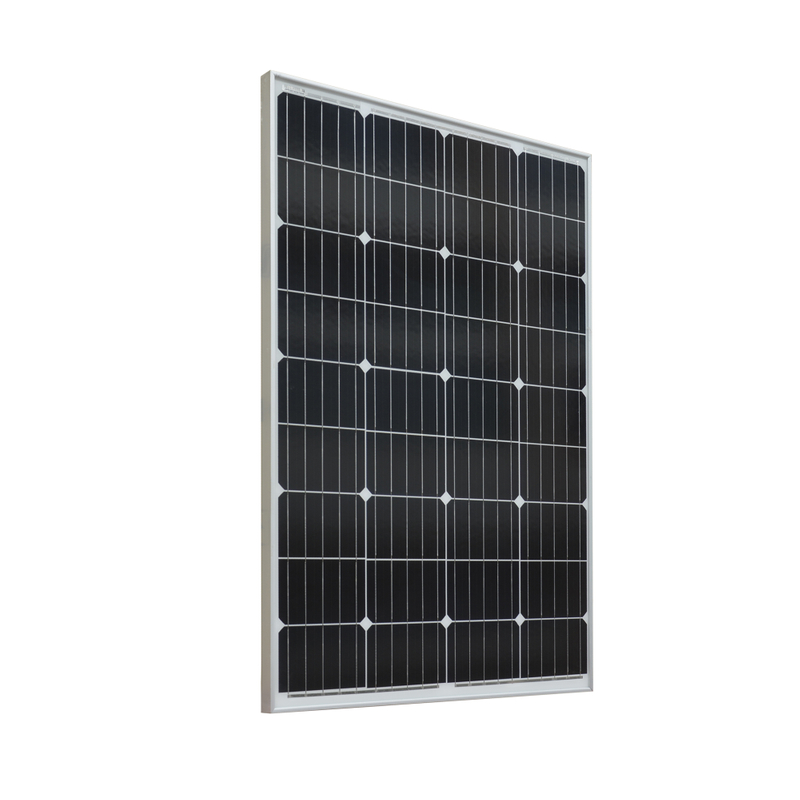

100 watt monocrystalline solar panel for home use

Name: 100 watt monocrystalline solar panel for home use
Brand: Techfine
Rating: 5.0 (34 reviews)

Tips:

Samples can be sent for testing;
Minimum order quantity (MOQ) ≥5 Pieces;

Feature：

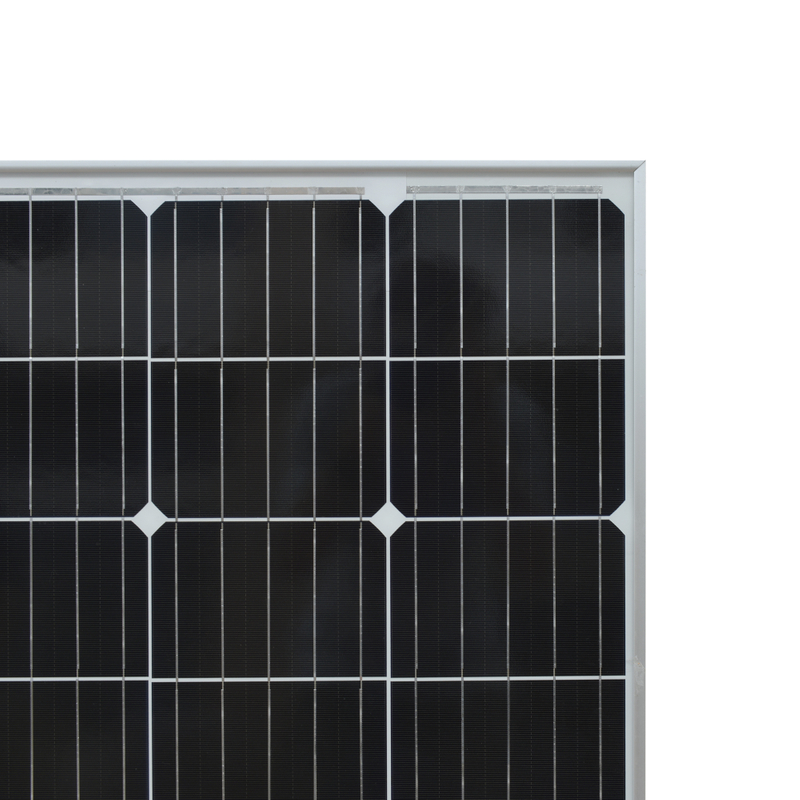

High efficiency monocrystalline silicon

Service life: ≥25 years

-1 ~ +5% peak power output

High efficiency monocrystalline silicon

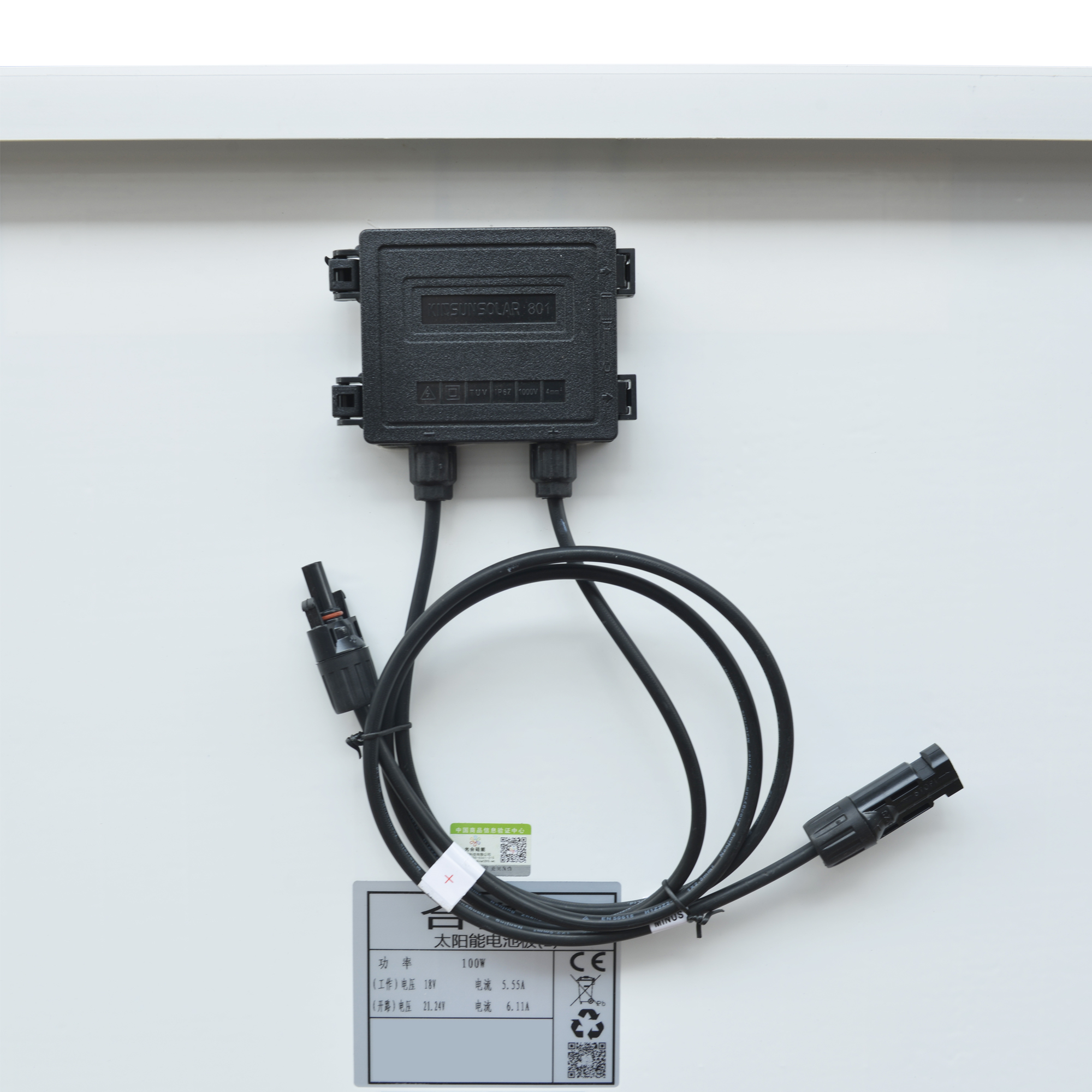

High standard waterproof multifunctional junction box

100 watt monocrystalline solar panel service life: ≥25 years

Tight seal, high light transmittance and mechanical strength

Adopt high light transmittance low iron tempered suede glass

Easy to install and suitable for various application environments

EVA film, TPT backplane, and high quality anodized aluminum alloy frame

100 watt monocrystalline solar panel roofing

100 watt monocrystalline solar panel Outdoor power generation project

3rd Floor, Hongxingzhiye Building 3, No.6 Foluo Road, Luocun Town, NanHai District, Foshan, Guangdong,China.

Leave a Message

Technical parameter		Packing method
Component Power (W)	100	Product size	103067030MM
Operating voltage (V)	18	Packing quantity (PCS)	Single and five more
Operating current (A)	5.55	Carton size	105.522.569.5CM
Open circuit voltage (V)	21.24	Short circuit current (A)	6.11
Working environment
Maximum system voltage	DC1000V(TUV)	Ground resistivity	＜0.1Ω
Operating temperature	-40～+85℃	Insulation resistance	≥40MΩ
Nominal operating temperature of the battery	45±2℃	Application level	Class A
STC: Solar irradiance 1000W/m2, component temperature 25℃, air quality AM1.5

Technical parameter		Packing method
Component Power (W)	100	Product size	103067030MM
Operating voltage (V)	18	Packing quantity (PCS)	Single and five more
Operating current (A)	5.55	Carton size	105.522.569.5CM
Open circuit voltage (V)	21.24	Short circuit current (A)	6.11
Working environment
Maximum system voltage	DC1000V(TUV)	Ground resistivity	＜0.1Ω
Operating temperature	-40～+85℃	Insulation resistance	≥40MΩ
Nominal operating temperature of the battery	45±2℃	Application level	Class A
STC: Solar irradiance 1000W/m2, component temperature 25℃, air quality AM1.5
